SEGO Configuration J2 - Setup Instructions

Step 1. Set Up Frames

Assemble the frames individually, with the specified quantities outlined below. Refer to the setup instructions provided in the spec sheet and accompanying videos for guidance.

Step 2. Pre-Layout Orientation

Your graphics are double-sided, and the wire can exit from either the left or right side of the frame. Before installing anything, check the wiring diagram below and pre-plan your layout based on your outlet's location — this determines the correct orientation for your graphics and connectors. Additional 5M wires can be purchased if needed.

Step 3. Set Up Graphics

Graphic install steps: corners first, middle second, smooth out last

Now, it's time to install the graphics. For this step, the procedure remains consistent across all frames. Tilt the frame over for setup. Begin by inserting the silicone edge inside the frame, starting with the corners, then progressing to the middle edges, and finally extending the remaining silicone inward.

Step 4. Set up Connectors

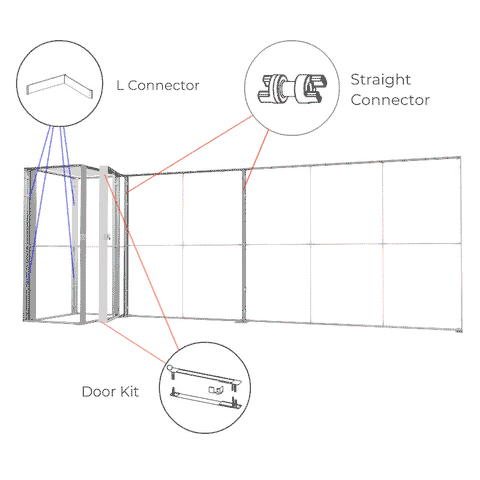

Locate the connectors above and utilize the diagram and videos below to connect the frames. You might have to loosen a section of the graphics to facilitate certain connections.
